Garmin
€1,874.71
Earn 9373 points with this purchase

Clearly The Most Amazing Sonar Tech Ever

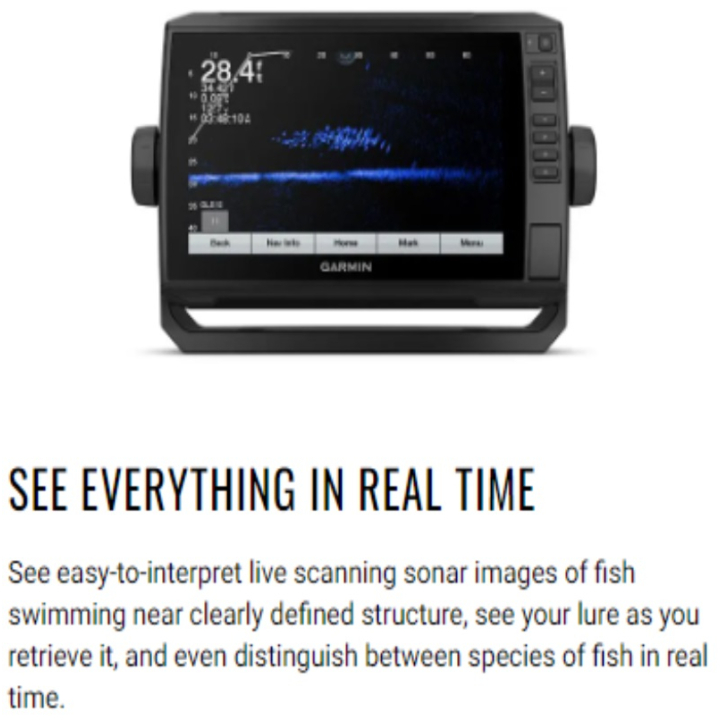

- Who wouldn’t want stunning, real-time imagery below and around their boat

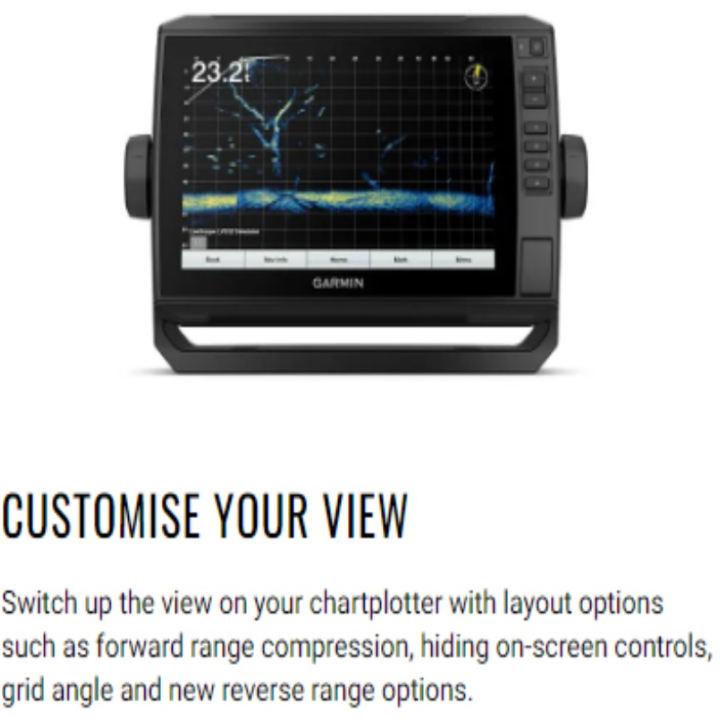

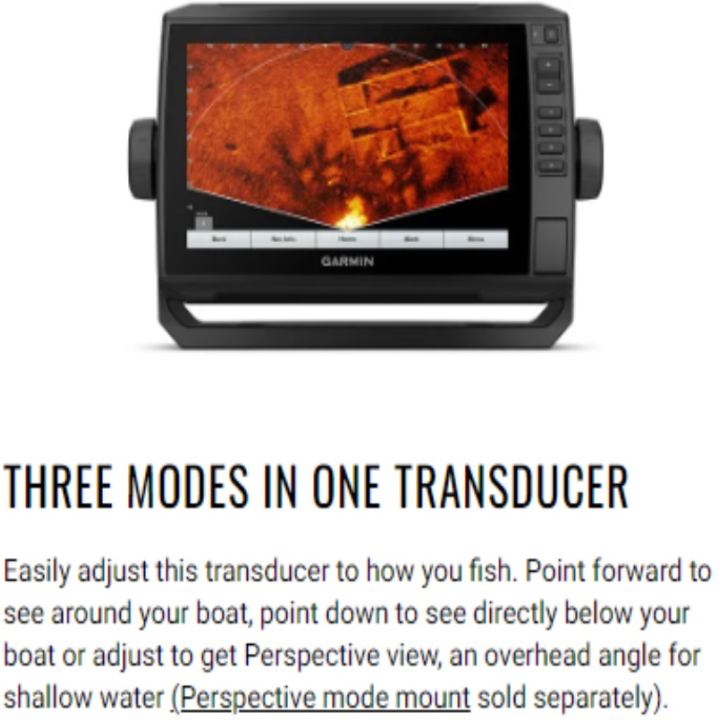

- Need a new view? No sweat. This transducer is easy to adjust

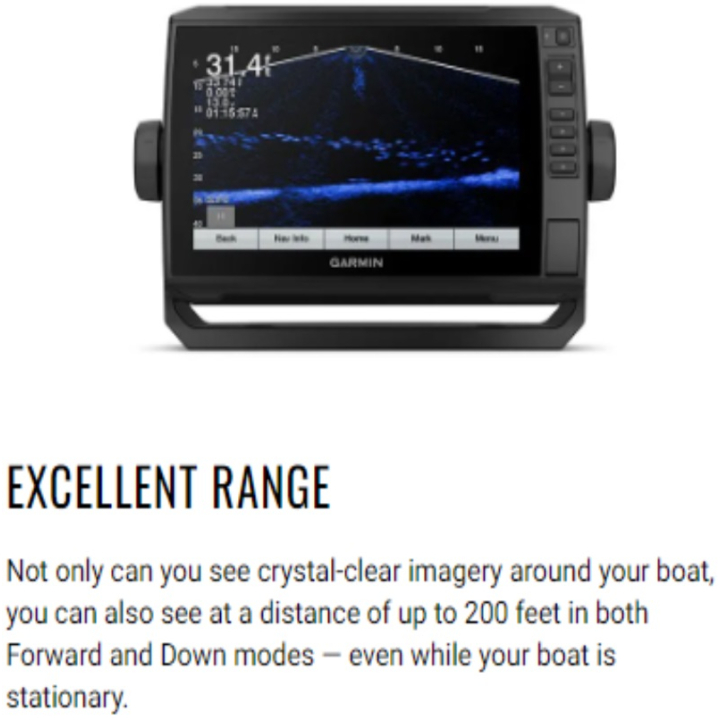

- Up to 200 feet down. Up to 200 feet away. That’s an impressive view for real-time sonar

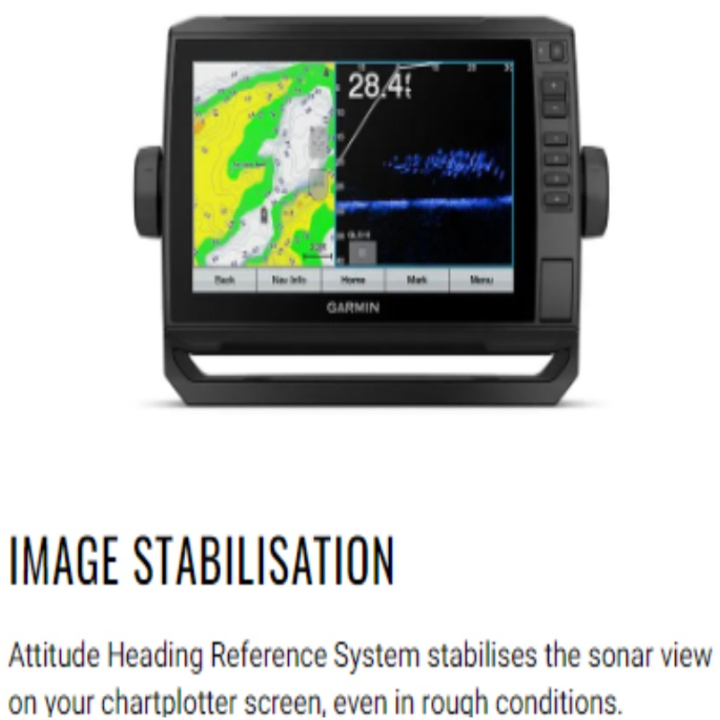

- Even if the waters are rough, this system stabilises the view on your chartplotter screen
- No matter your setup, the simple plug-and-play connector makes install a breeze

In stock
Free Ireland delivery when you spend €60
Share
Earn 9,373 loyalty points with this purchase
Free Click & Collect In stock

Collect from either store — usually ready the same day:

  • Armagh Store (Procastangling) · Armagh
  • Newry Store (Newryanglingcentre) · Newry

Choose your store & time slot at checkout.

  • Order within 7h 28m for same-day dispatch
  • Free Ireland delivery over €60
  • Free 30-day returns
  • Secure checkout
  • Free Click & Collect

Description

General
DIMENSION: GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm. LVS32 transducer: 13.7 x 9.7 x 4.6 cm
WEIGHT: GLS 10 sonar black box: 2.0 kg. LVS32 trasnducer: 0.9 kg
WATERPROOF: IPX7
TRANSDUCER BEAMWIDTH: 20° x 135°
TRANSDUCER CABLE LENGTH: 20 ft
TRANSDUCER NUMBER OF PINS: 21
TEMPERATURE RANGE: Operating: -15°C to 70°C; Non-operating: -40°C to 85°C Electrical features
POWER INPUT: 10-32 V
POWER USAGE: 21 W typical, 58 W max
FUSE: 7.5 A Sonar features & specifications
FREQUENCY 530-1,100 kHz
TRANSMIT POWER: 500 W
MAXIMUM DEPTH: Down and forward: 200 feet (61 m)
SONAR TYPE: Live
TARGET SEPARATION @100': 22" Connections
GARMIN MARINE NETWORK PORTS: 1 (small connector) Beamwidth: 20° x 135°
Transducer cable length: 20 ft.
Transducer number of pins: 21 In The Box

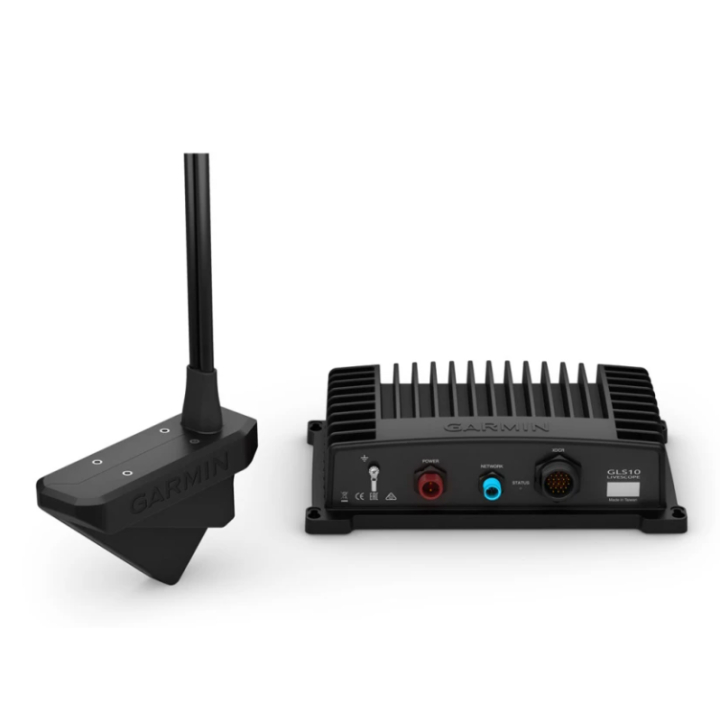

LiveScope GLS 10 sonar black box
Panoptix LVS32 transducer
Trolling motor barrel mount
Trolling motor shaft mount
Transom mount
Charging/data cable
2 metre Garmin marine network cable, small connector
Network adapter cable
Mounting hardware
Documentation

Product details

  • Brand
  • Reference
    010-01864-00
  • In stock
    1 Item
  • EAN13
    0753759182724
  • MPN
    010-01864-00
